Mechanism Digital Files
We have always offered our 3D printing files for free because we want the Deckmate to be accessible to all. This project has been greatly informed by the Steam/maker community and this is just a small way in which we can give back.
That said, there are definitely limitations to the 3D printed parts, especially in the long term. Read on for a breakdown of the differences of the options available to you!
Currently Available Files

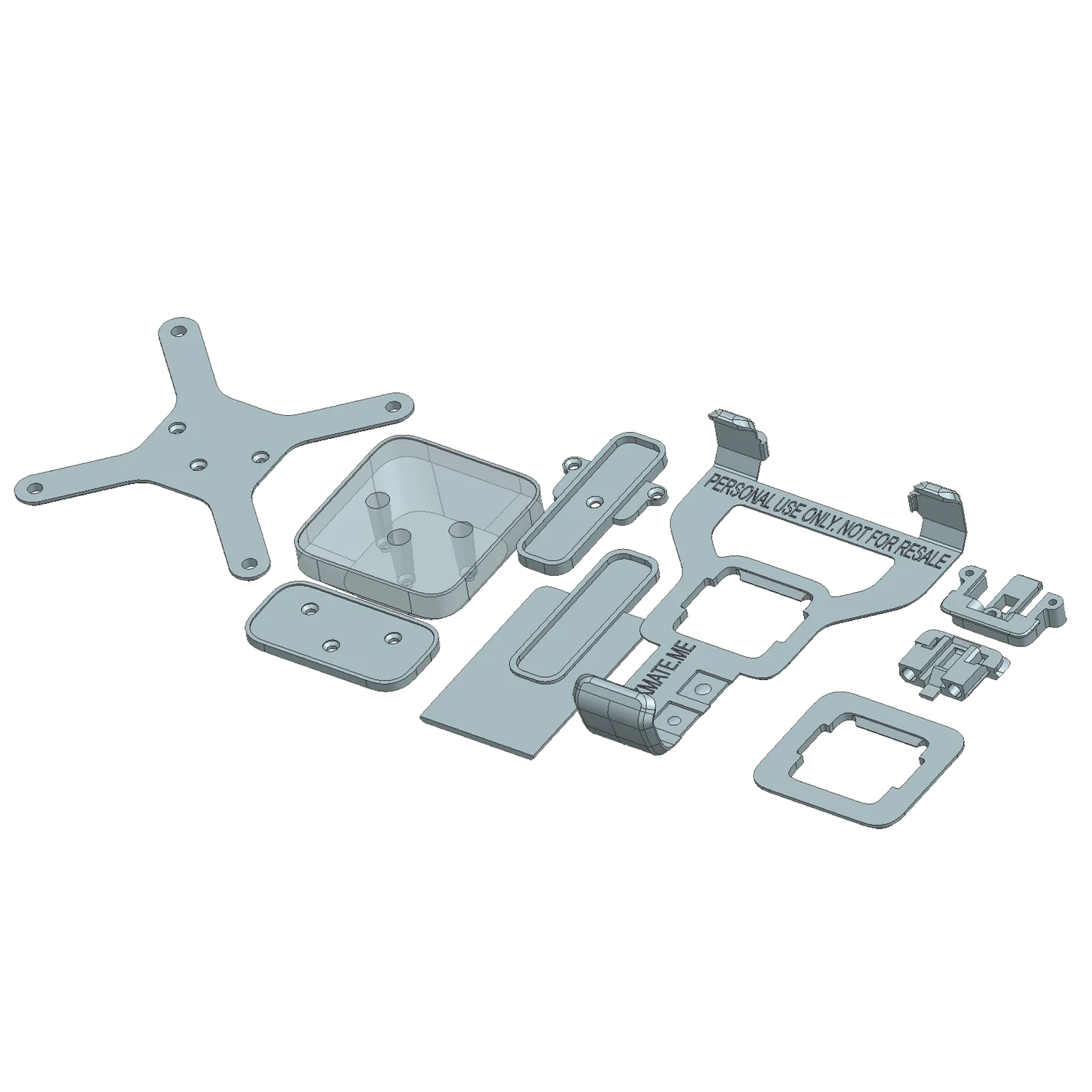

The Full System

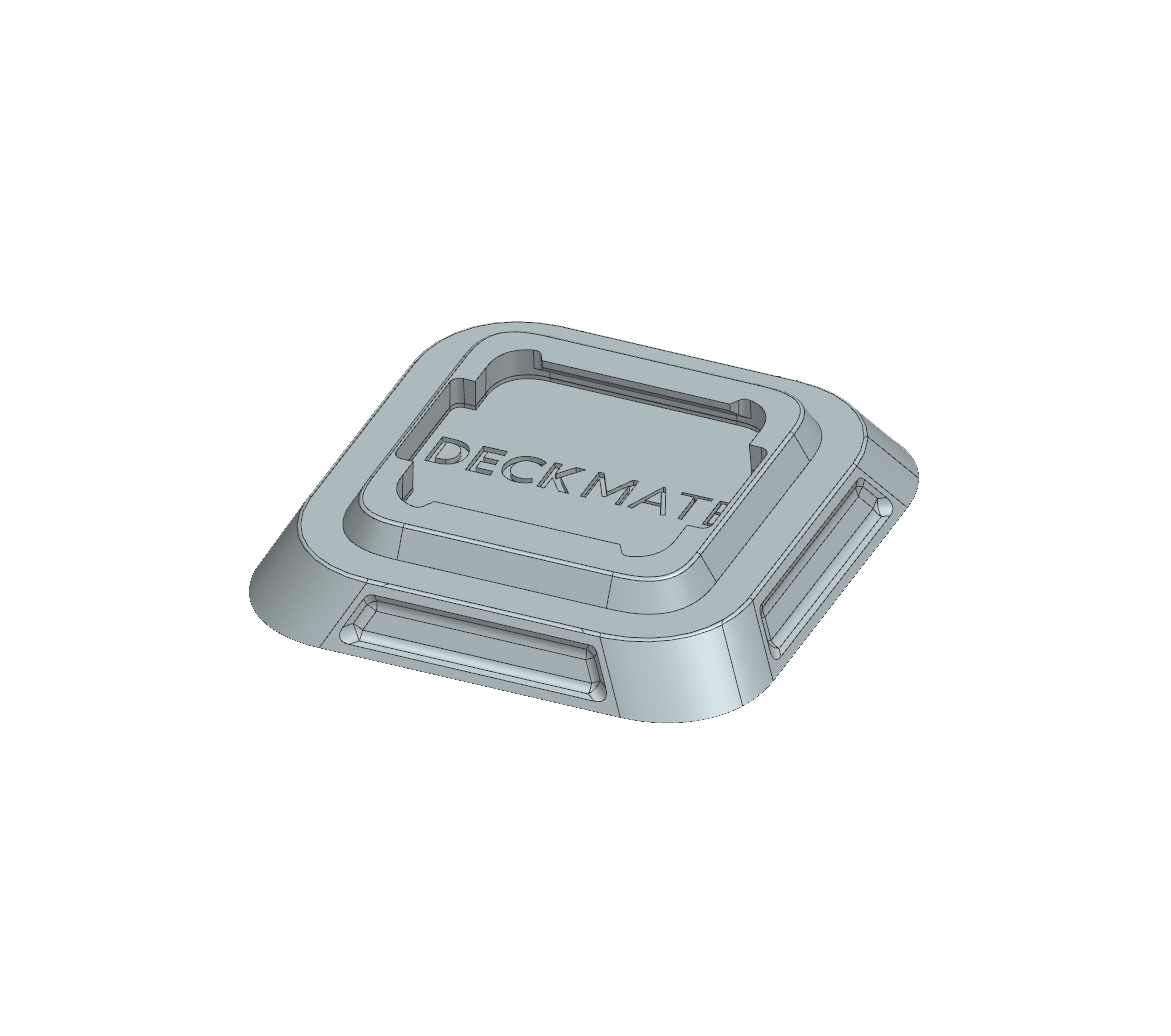

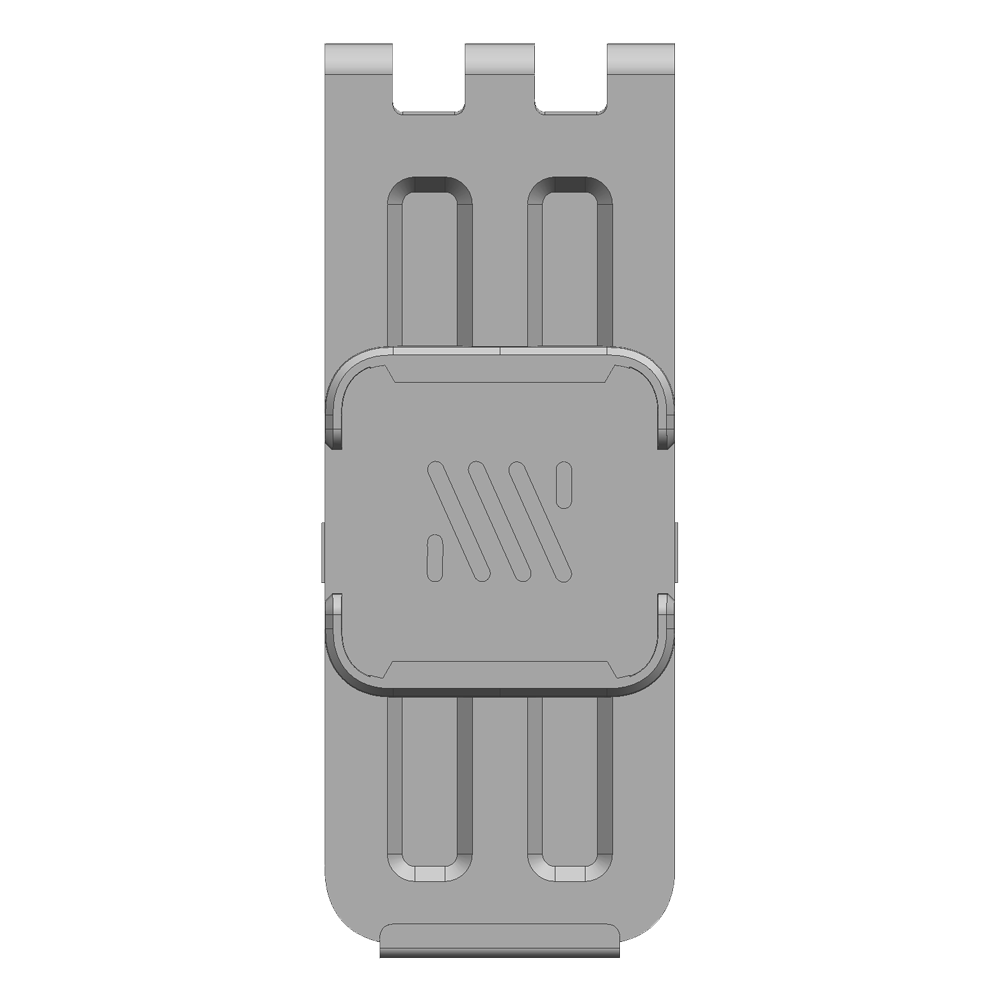

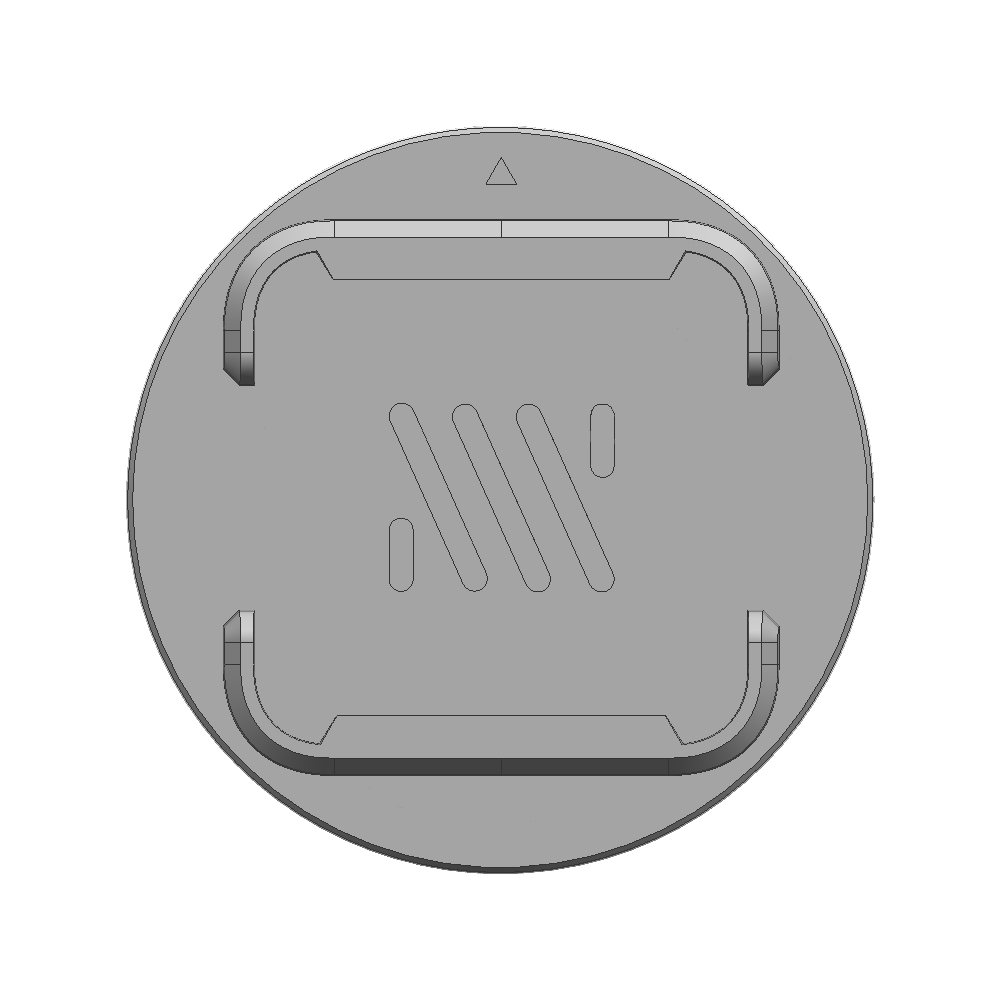

Deckmate Killswitch Adapter
- Surprisingly, it might be cost competitive.
- High Strength and Reliability
- Production grade materials
- Cosmetics blend seamlessly with the Steam Deck
- MicroSD card holders work great
- Wall mount has screw locations
- No mucking about with 3D printing settings
- International shipping can bump up your costs
- Design not modifiable
- Cool colors and materials
- Infinite Customization - Modify to fit your needs
- Print any part at any time
- Can be cheaper with our DIY Kit if you already have the parts and materials
- Expensive if you are making a single set and buying individual parts
- Cosmetically inferior
- Need to dial in print settings
- No custom cut adhesive
- No screw wings for wall mount
- Weaker system overall
Let's talk about pricing for a second. You'll notice a couple of those pros and cons listed cost as an area of concern for the printed parts. What gives?
The truth is that it's hard to buy onesie/twosies of these parts. If you were to buy all the parts on the list below the cost would come out to $42.82 in parts alone at the time of this writing, not including printing costs.
If you were to print this just for yourself, that might not make sense. However, if you were to print multiple sets for you and your friends, the additional cost is negligible since most of these items come in higher quantities than what you need.

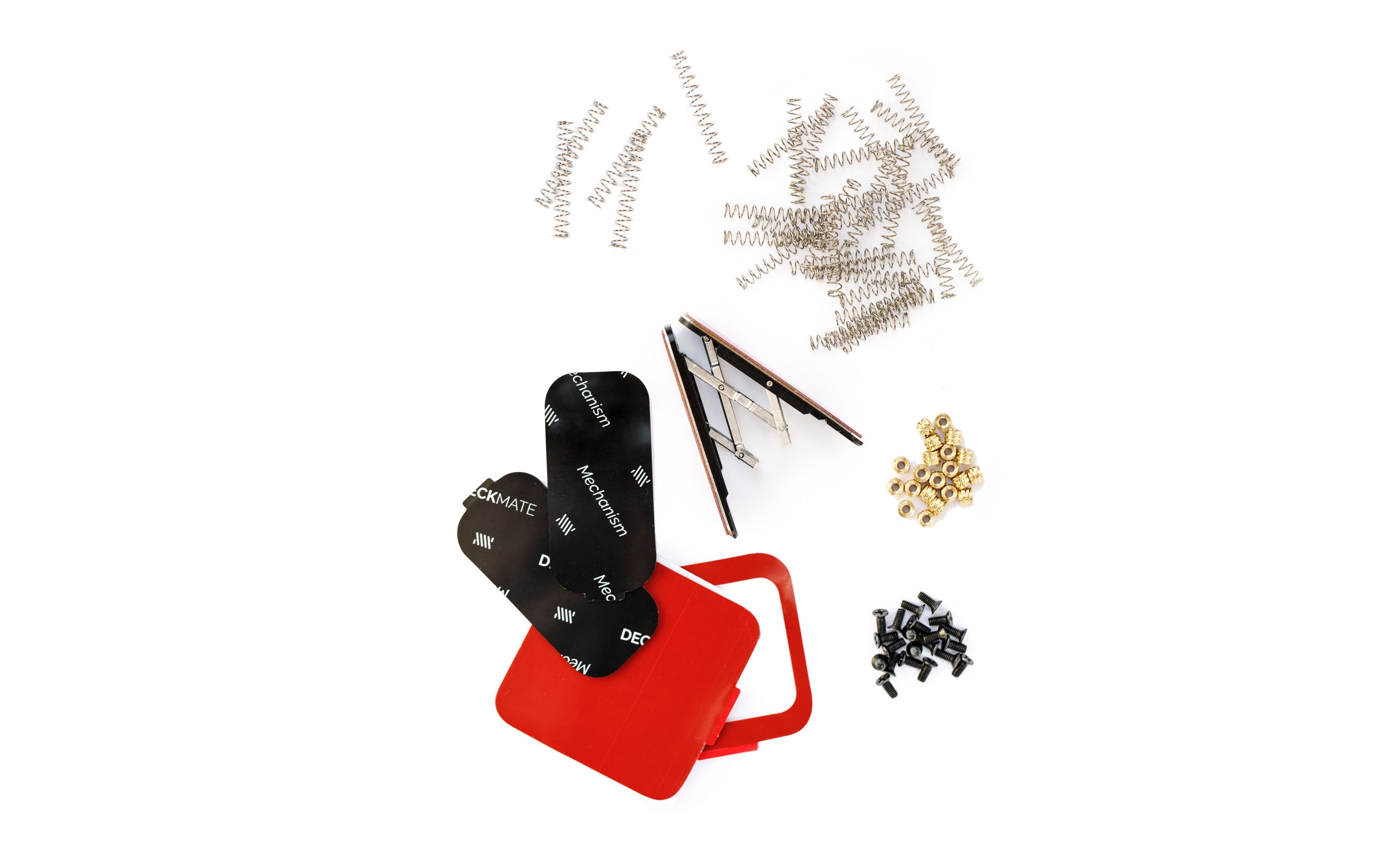

Alternatively, we just released a DIY Kit that includes all the hardware you need to assemble your full system and custom cut adhesives for just $19
Detailed Design Comparison
Strength - Injection molded parts create solid and consistent parts for a strong, long lasting product. While 3D printed parts work really well, depending on your printer and filament, your print quality will vary greatly
Reliability - 3D printing is a great tool for iterating on designs and testing out concepts quickly, but the reality is that most home 3D printers have too much variability to create a constantly reliable product. Your Steam Deck is expensive...
Difficulty - While we love a project we know that not everyone is up for it. Assembling your own 3D printed parts can come with a bit of trial and error. Additionally some of the hardware needed for this build requires additional tools and technical know how.
Design - while the core design of our system is consistent across our 3D printed and Molded parts (making them interchangeable and compatible) there are a few key design differences.

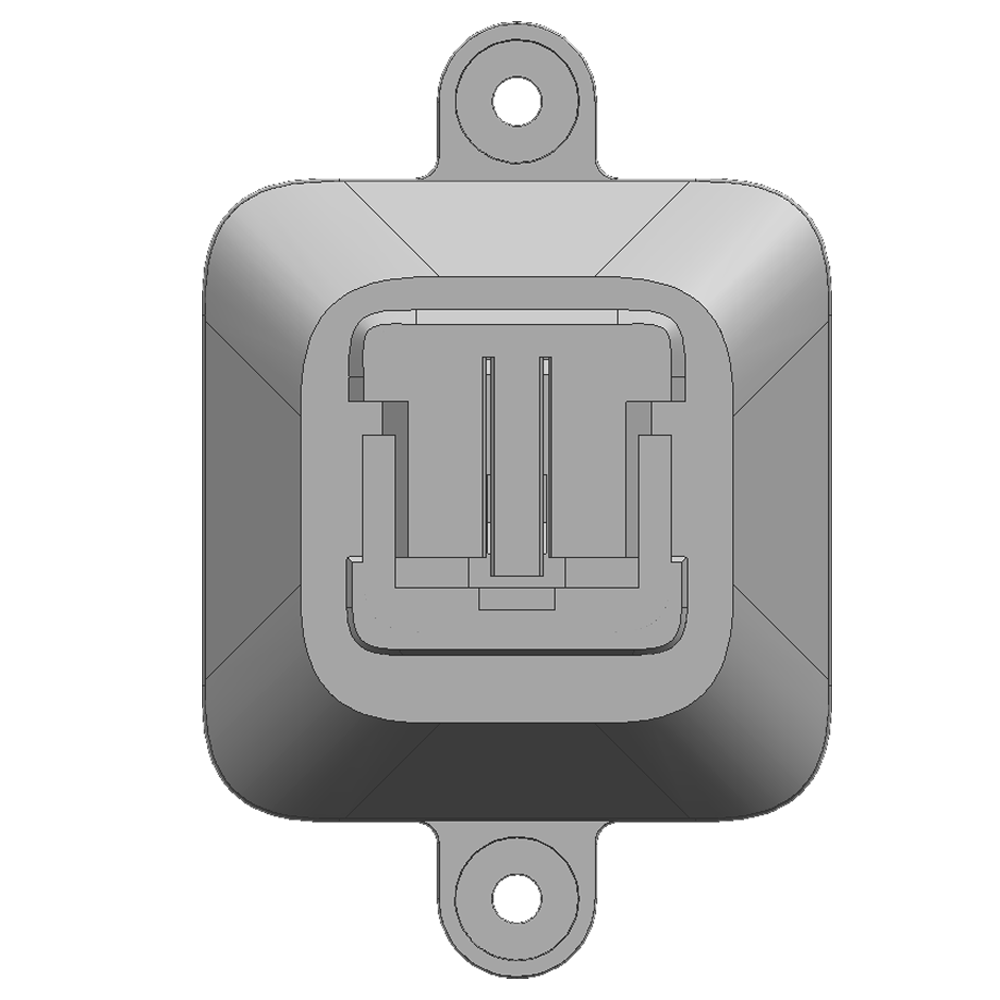

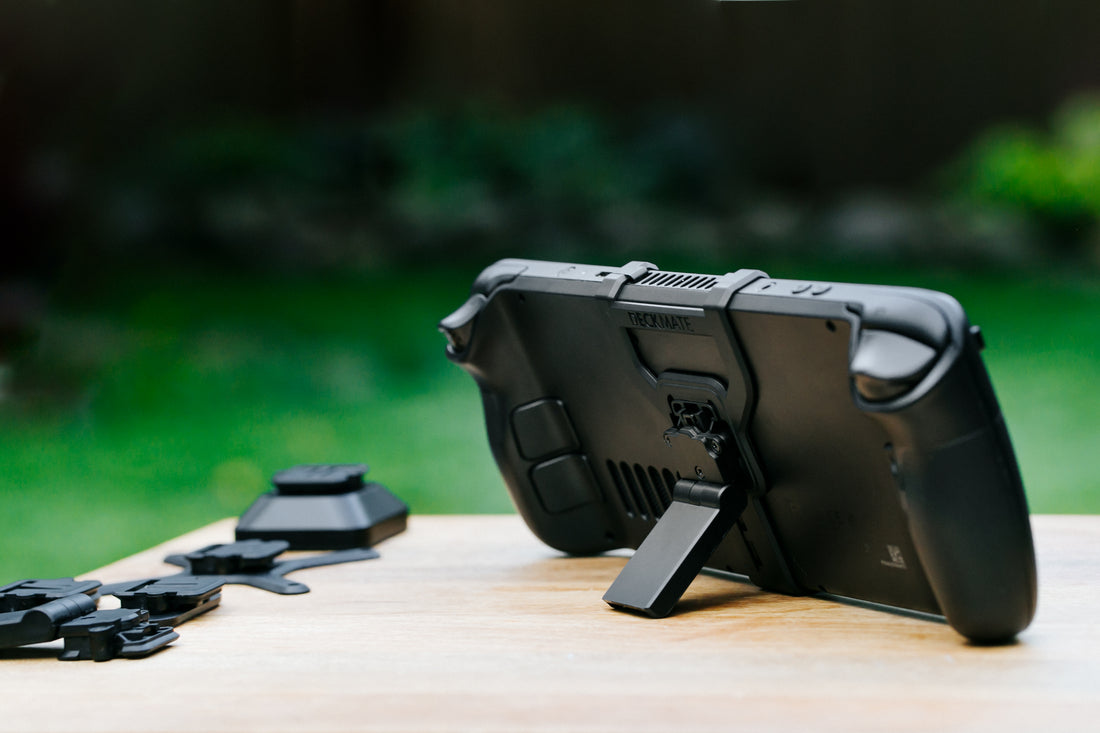

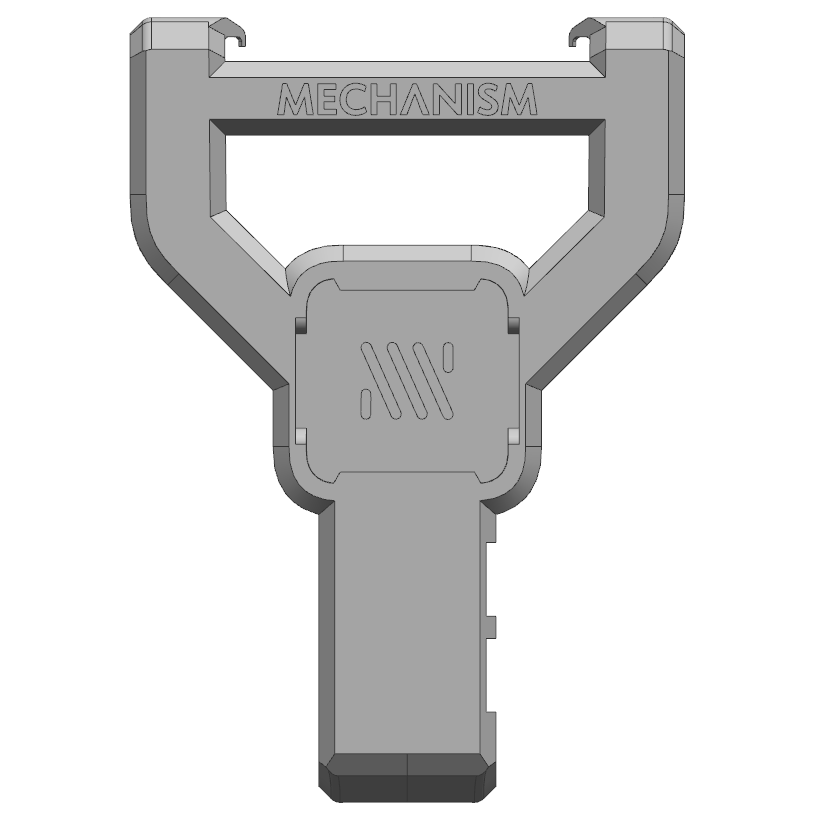

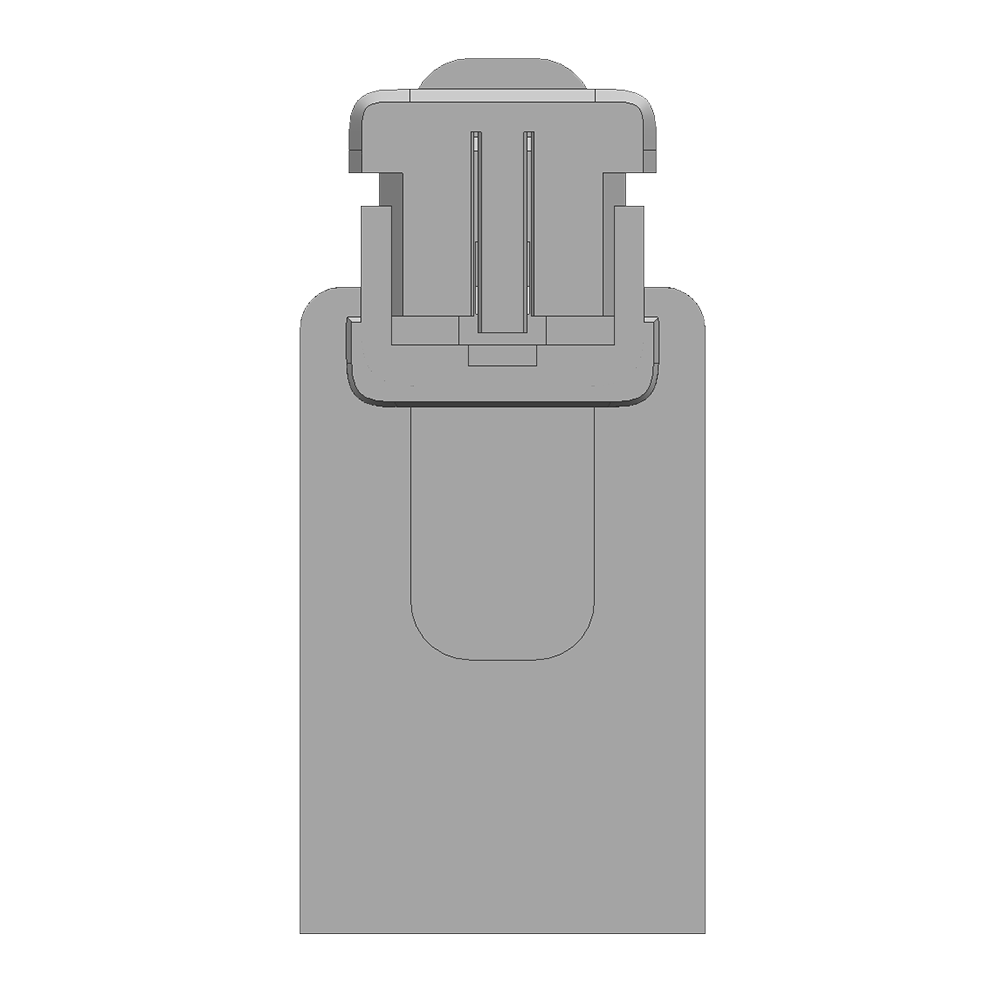

The Deckmate grip features a more streamlined and symmetric design, with SD card holders that actually work. The Wall Mount has the same adhesive, but the molded version has added wings that allow for mounting with screws. The Kickstand received the biggest design overhaul to a stronger and sleeker design, with more angle adjustability and smoothness.

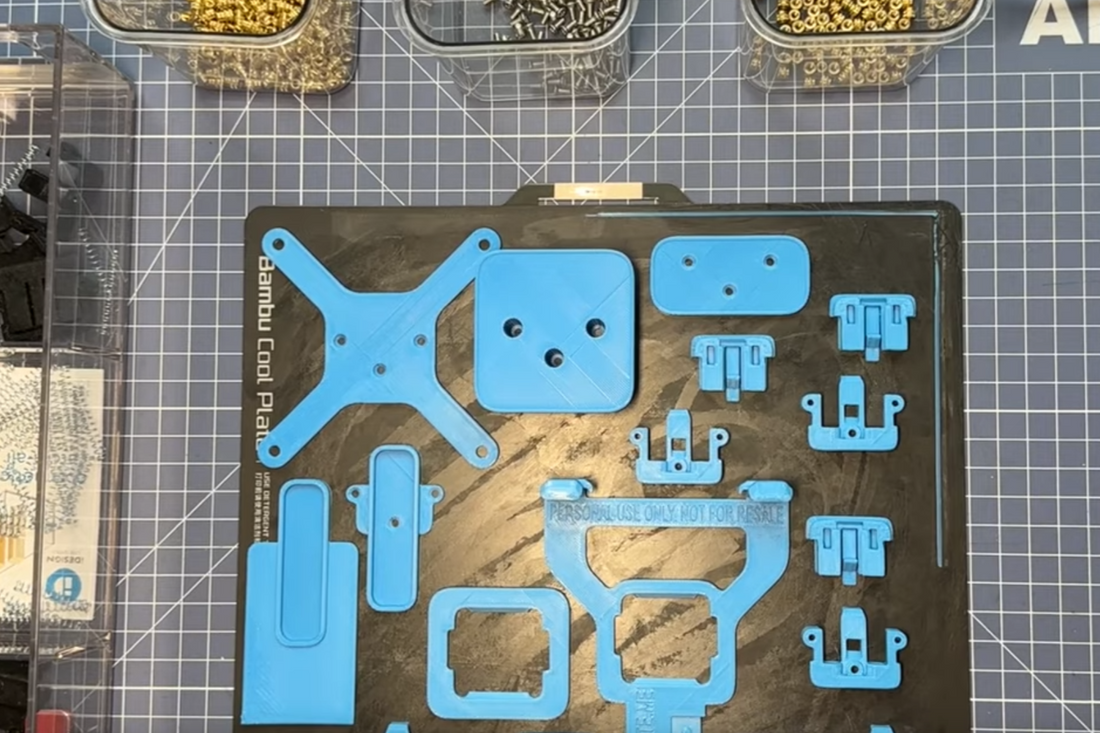

Make and assemble 3D printed parts
- DIY Kit includes all the hardware and custom cut adhesives to assemble your full system - Here - $19
- Internal springs (2 needed per mechanism) - Here - $6.75
How to Print

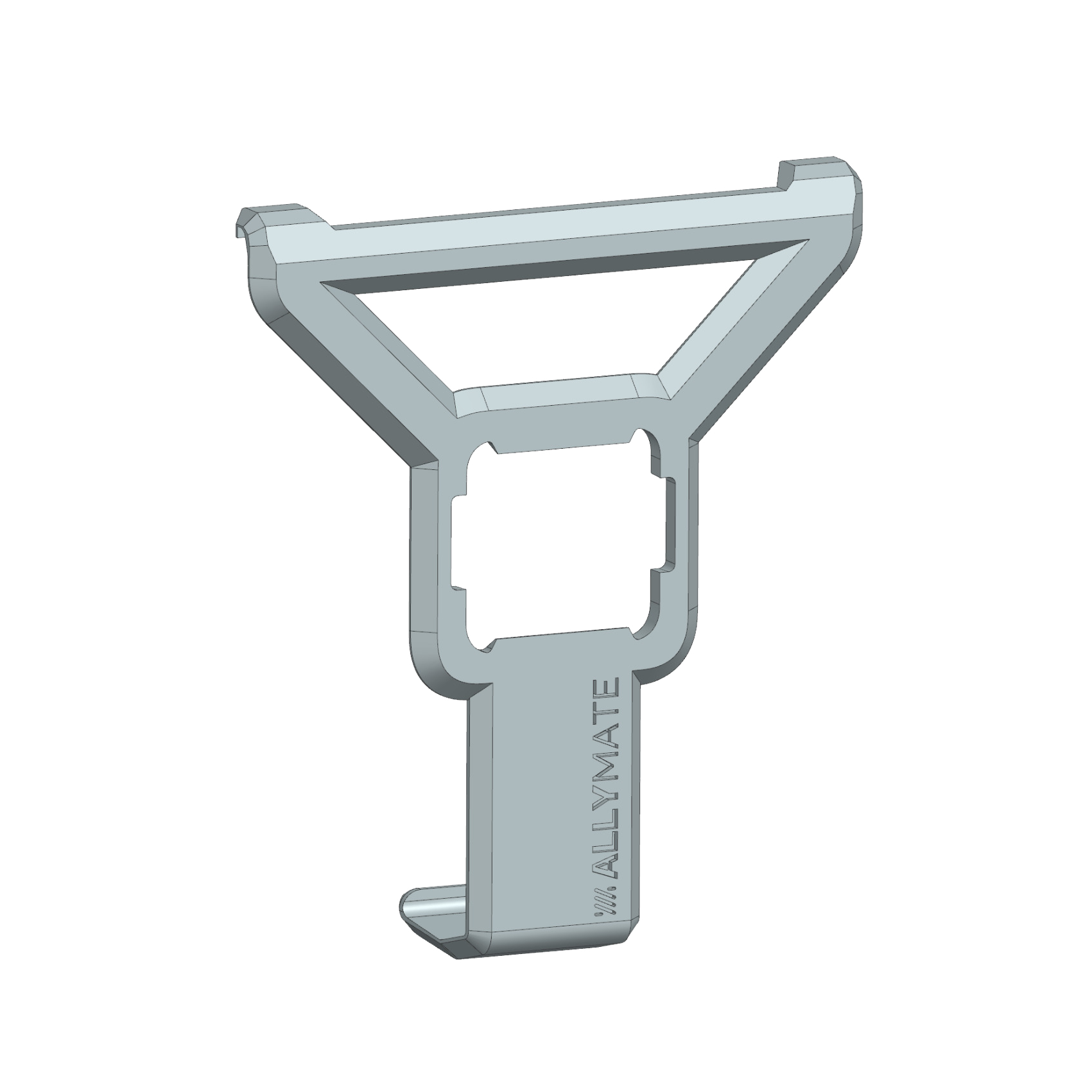

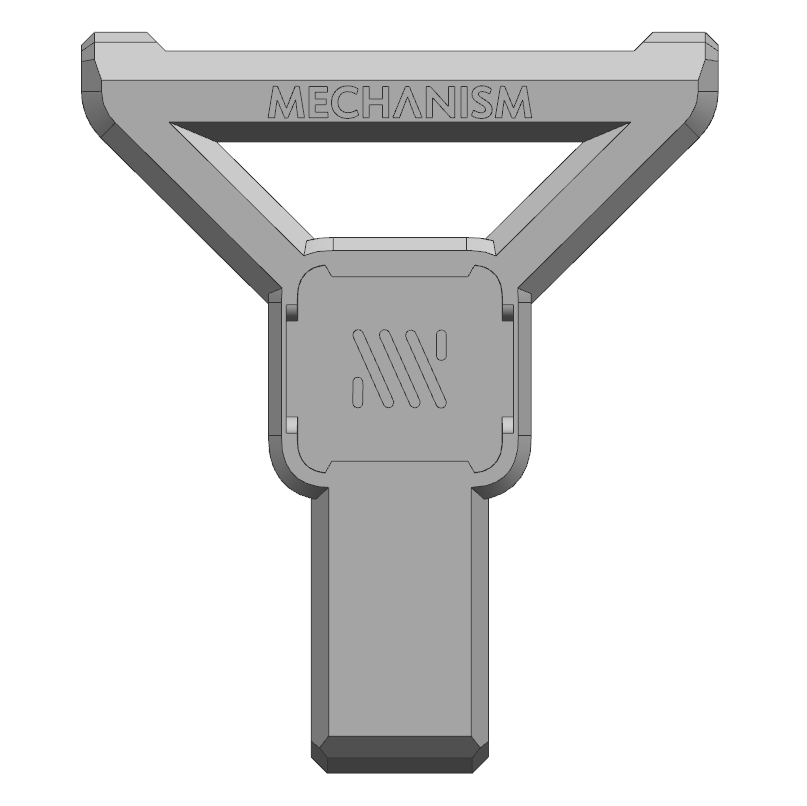

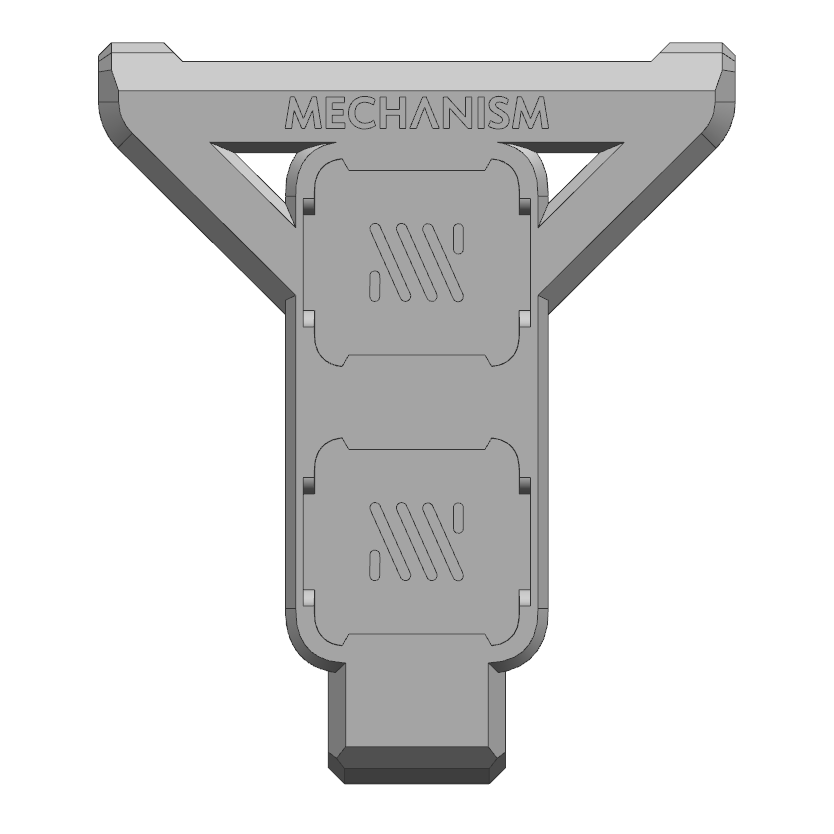

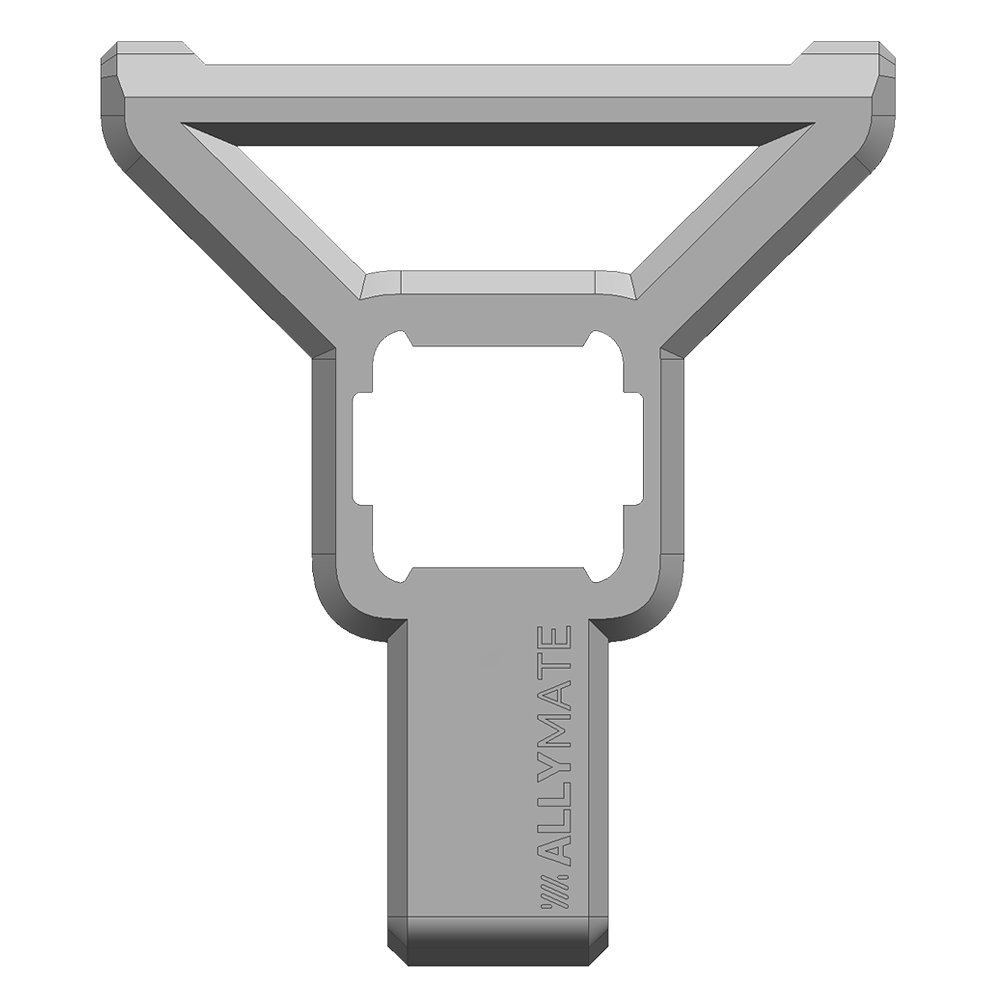

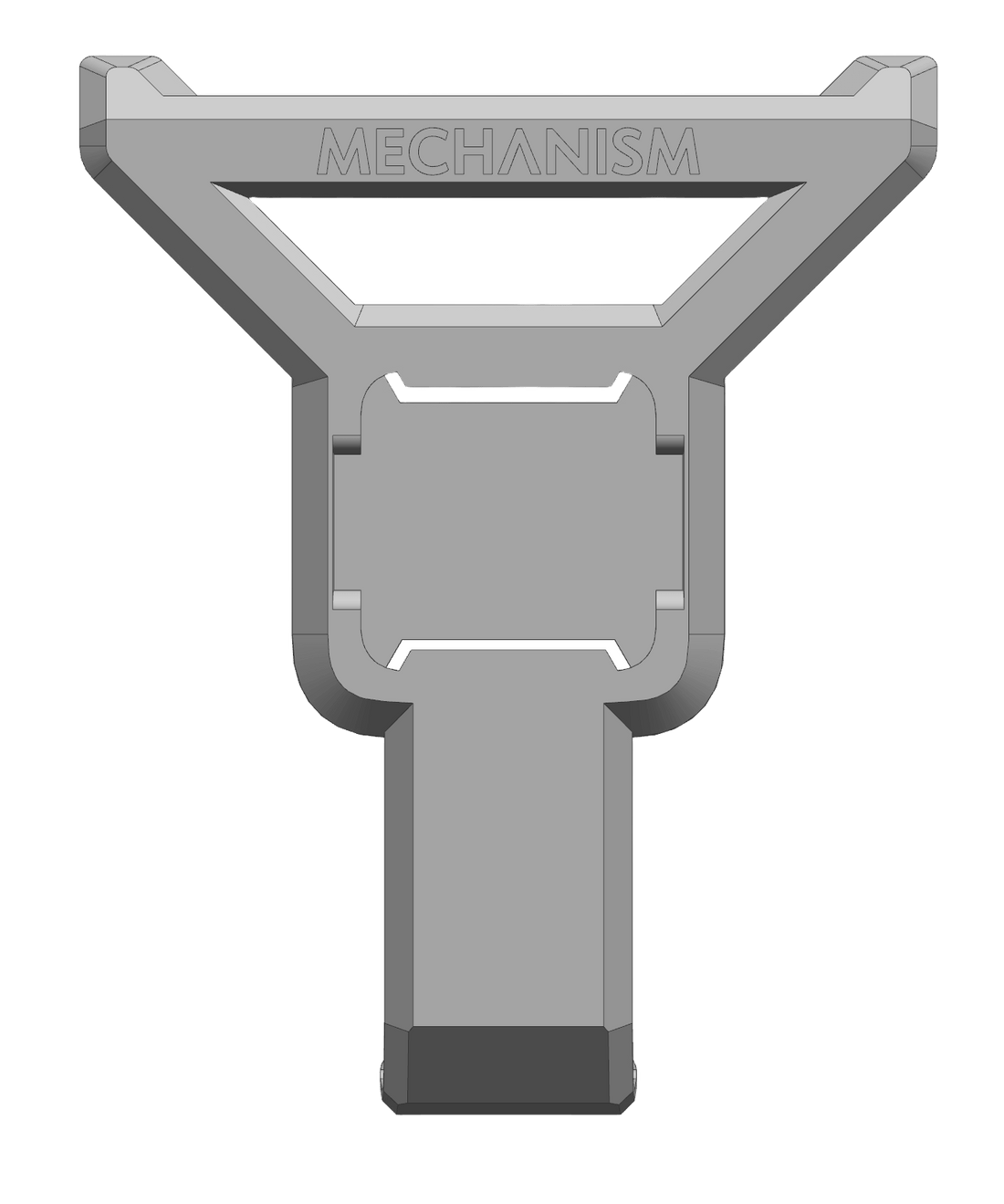

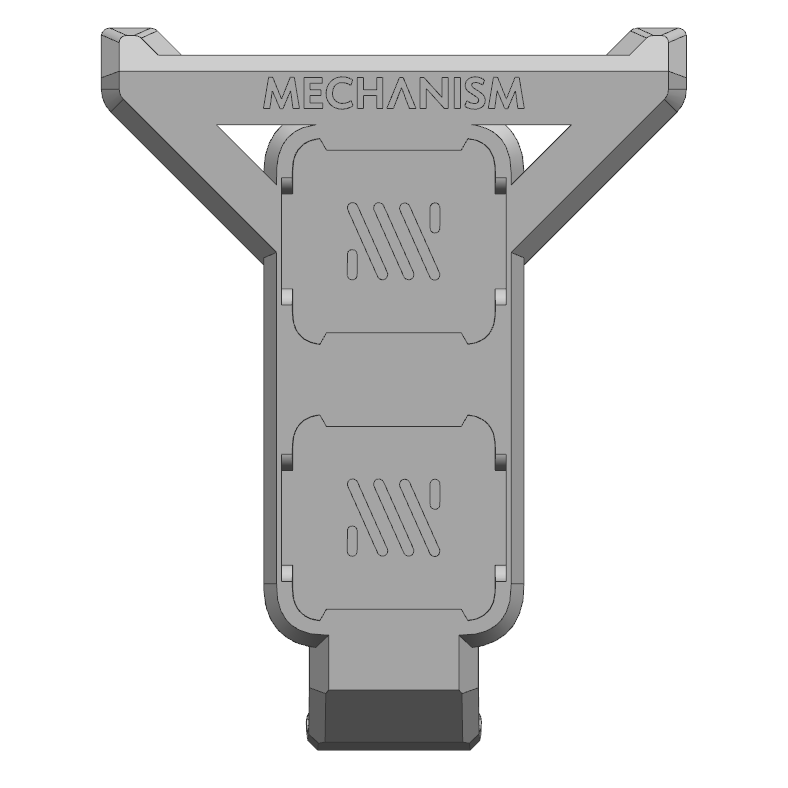

All files are correctly oriented for you to print without support, except the Allymate Grip, which does require support.
The print settings that I used:
- Material: PLA
- Layer height: 0.20mm
- Infill: 15%
- Nozzle Temp: 215 degrees
- Bed Temp: 60 degrees
NOTE: If you are having any trouble, feel free to join our Discord channel here to get some help!
